DAOKI USB Programmer - CH341A Series Burner For Ghana

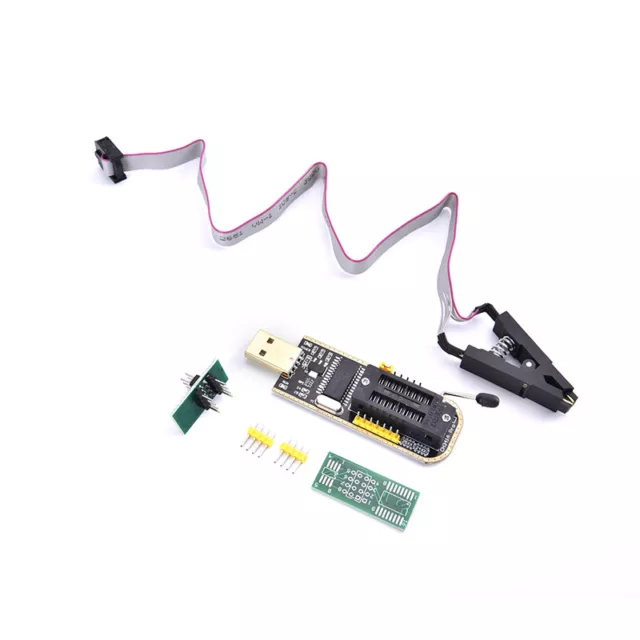

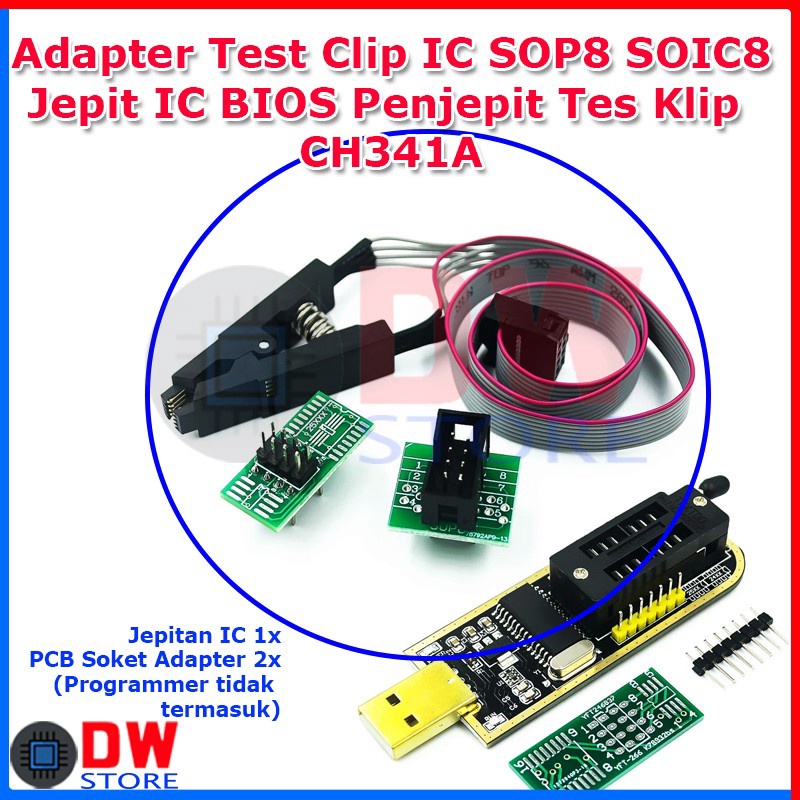

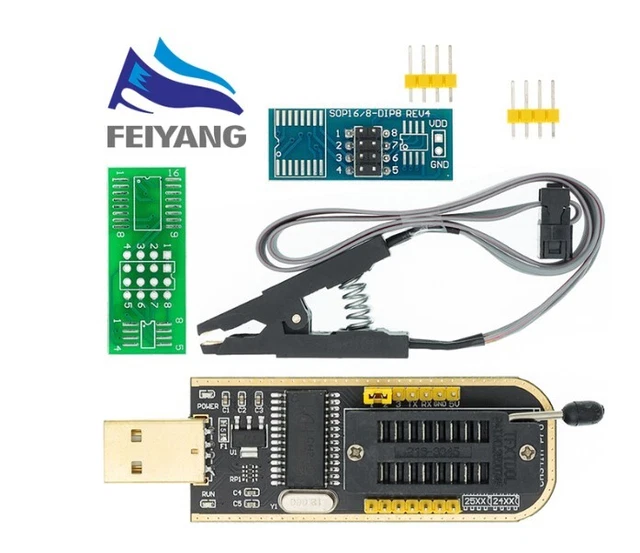

Why Choose Us? Nowadays, many motherboards, routers, set-top boxes, LCD screens, game consoles and other EEPROM chips are SOP8. The traditional solution to programming an EEPROM is to take the chip apart, program it and then solder it back -- a troublesome operation that can easily damage the chip. We provide detailed PDF tutorials, CH341A software, and drivers, which will be sent to you by email after the order. If you do not receive it, please send us a message. 2 x SOP8 SOP16 to 8Pin Converter 2 x 2.54mm 4Pin header Open the clamp first, and then clamp it from the left and right sides of the chip. When disassembling Do not pull out directly. First separate the clips left and right, and then remove them so that they don't damage the tips of the clips. Compatible BIOS Chip Model 25 Series BIOS Support List AMIC: A25L512 A25L05P A25L10P A25L010 A25L020 A25L20P A25L40P A25L040 A25L080 A25L80P A25L016 A25L16P A25L032 ATMEL: AT25F512 AT25F512B AT25F512A AT25FS010 AT25F1024 AT25F1024A AT25F2048 AT25DF021 AT25F4096 AT25FS040 AT25DF041A AT26F004 AT26DF081A AT25DF161 AT26DF161 AT26DF161A AT25DF321A AT26DF321 AT25DF321 AT25DF641 COMMON: 25X005 25X05 25X10 25X20 25X40 25X80 25X16 25X32 25X64 25X128 25X256 25X512 25X1024 25X2048 ES: ES25P10 ES25P20 ES25M40A ES25M40 ES25P40 ES25M80 ES25M80A ES25P80 ES25M16 ES25M16A ES25P16 ES25P32 MXIC: MX25V512 MX25L512 MX25L1005 MX25L2005 MX25L8035 MX25L4005A MX25V4035 MX25V4005 MX25V8005 MX25L8005 MX25L1635D MX25L1605D MX25L1608D MX25L3235D MX25L3208D MX25L3237D MX25L3225D MX25L3205D MX25L3206E MX25L6405D MX25L6455E MX25L6408D MX25L6406E MX25L6445E MX25L12805D MX25L12845E NEXFLASH: N25P10 N25P20 N25P40 N25P80 N25P16 N25P32 PMC: PM25LV512A PM25LV010A PM25LV020 PM25LV040 PM25LV080B PM25LV016B SAIFUN: SA25F005 SA25F010 SA25F020 SA25F040 SA25F080 SA25F160 SA25F320 SPANSION: S25FL004A S25FL040A S25FL008A S25FL160 S25FL016A S25FL032A S25FL064A S25FL128P S25FL129P S25FL128A SST: SST25VF512A SST25VF512 SST25VF010 SST25VF010A SST25VF020A SST25VF020 SST25VF040B SST25VF040A SST25VF040 SST25VF080B SST25VF016B SST25VF032B SST25VF064C ST: M25P05A M25PE10 M25P10A M25P20 M25PE20 M25PE40 M25P40 M25PE80 M25P80 M25PX80 M25PX16 M25P16 M25PE16 M25P32 M25PE32 M25PX32 M25PX64 M25P64 M25PE64 M25P128 24 Series BIOS Support List ATMEL: AT24C01B AT24C01 AT24C01A AT24C02 AT24C02A AT24C02B AT24C04B AT24C04 AT24C04A AT24C08A AT24C08B AT24C08 AT24C16 AT24C16A AT24C16B AT24C32B AT24C32A AT24C32 AT24C64 AT24C64A AT24C64B AT24C128 AT24C128A AT24C128B AT24C256B AT24C256 AT24C256A AT24C512B AT24C512A AT24C512 AT24C1024 AT24C1024A AT24C1024B CATALYST: CAT24C01 CAT24WC01 CAT24WC02 CAT24C02 CAT24C04 CAT24WC04 CAT24WC08 CAT24C08 CAT24WC16 CAT24C16 CAT24WC32 CAT24C32 CAT24WC64 CAT24C64 CAT24WC128 CAT24C128 CAT24WC256 CAT24C256 CAT24C512 CAT24WC512 CAT24C1024 CAT24WC1024 COMMON: 24C013V 24C015V 24C023V 24C025V 24C045V 24C043V 24C083V 24C085V 24C165V 24C163V 24C325V 24C323V 24C645V 24C643V 24C1285V 24C1283V 24C2565V 24C2563V 24C5125V 24C5123V 24C10243V 24C10245V 24C20485V 24C20483V 24C40965V 24C40963V FAIRCHILD: FM24C01L FM24C02L FM24C03L FM24C04L FM24C05L FM24C08L FM24C09L FM24C17L FM24C16L FM24C32L FM24C64L FM24C128L FM24C256L FM24C512LFM HOLTEK: HT24C01 HT24LC01 HT24C02 HT24LC02 HT24C04 HT24LC04 HT24C08 HT24LC08 HT24C16 HT24LC16 HT24LC32 HT24C32 HT24LC64 HT24C64 HT24C128 HT24LC128 HT24C256 HT24LC256 HT24LC512 HT24C512 HT24C1024 HT24LC1024 NSC: NSC24C02L NSC24C02 NSC24C64 RAMTRON: FM24CL04 FM24C04A FM24CL16 FM24C16A FM24CL64 FM24C64 FM24C256 FM24CL256 FM24C512 ROHM: BR24L01 BR24C01 BR24L02 BR24C02 BR24L04 BR24C04 BR24L08 BR24C08 BR24L16 BR24C16 BR24L32 BR24C32 BR24C64 BR24L64 ST: ST24C01 ST24C02 ST24C04 ST24C08 ST24C16 ST24C32 ST24C64 XICOR: X24C01 X24C02 X24C04 X24C08 X24C16 The CH341A programmer supports most of the 24/25 series SOP8 chips on the market, but not all of them. Please be sure to check whether your chip model is within the compatible range in the product description before purchasing. The SOP8 clip support both wide body and narrow body SOP8 chip with 1.27MM Pitch.
