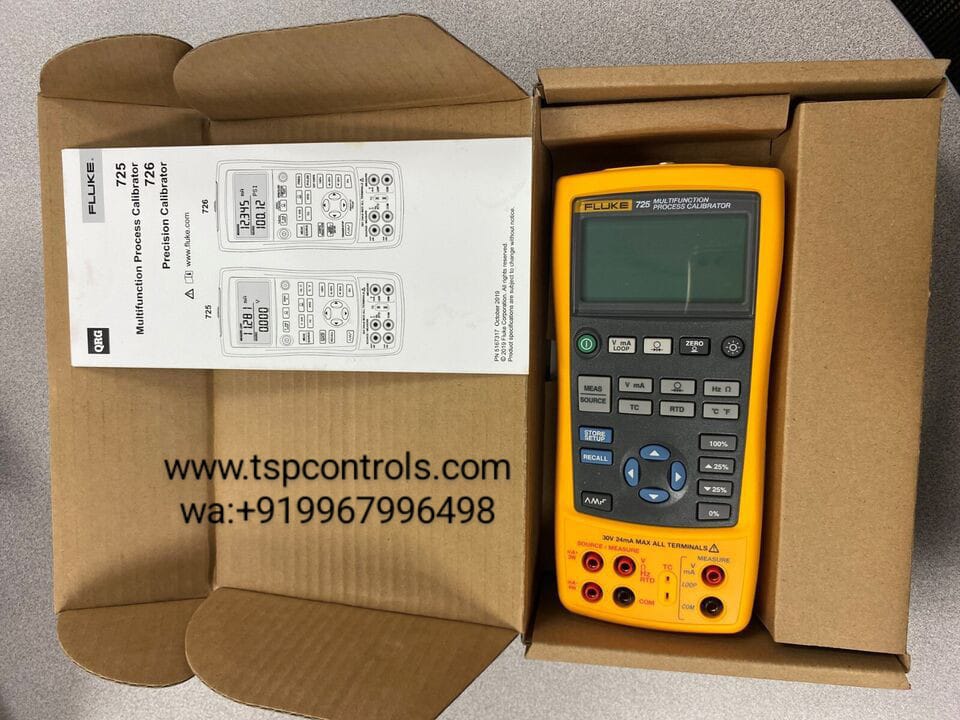

Display For FLUKE 726 725 Multifunction Process Calibrator Before Year 2017

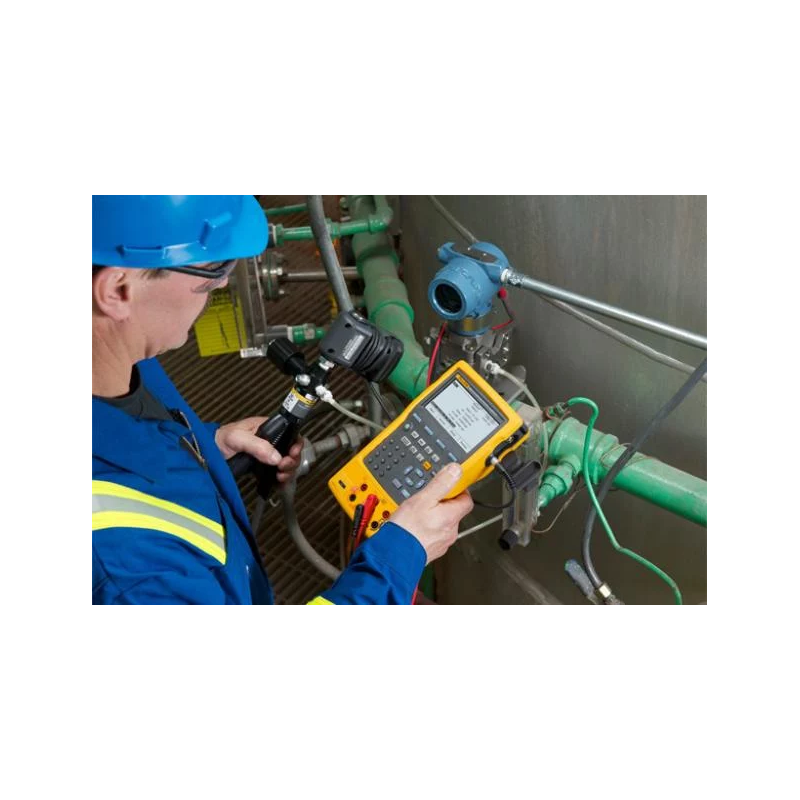

The multifunction process calibrator is a powerful yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter. Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters. Support flow meter testing with frequency and CPM functions. Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms. Battery door for easy changes. Voltage range: 0 to 100 mV, 0 to 10V (source), 0 to 30V (measure); voltage resolution - 0.01 mV, 0.01V, 0.01V; voltage accuracy - 0.02 percent Rdg + 2 LSD. Notes Max load, 1 mA. mA: 0 to 24 range, 0.001 mA resolution, . Notes max load, 1000 ohm. mV (TC terminals): -10.00 mV to 75.00 mV range, .01 mV resolution, . 025 percent of range + 1 LSD accuracy. Resistance: 15 to 3200 ohm range, 0.01 to 0.1 ohm resolution, 0.10 to 1.0 ohm. Frequency range: 2.0 to 1000.0 CPM, 1 to 1000 Hz, 1.0 to 10.0 kHz; Frequency resolution - 0.1 CPM, 1 Hz, 0.1 kHz; Frequency accuracy - +/-.05 percent, +/-.05 percent, +/-.25 percent. Loop Supply: 24V dc range, 10 percent accuracy. 30V maximum voltage. -40 to 71 degree C storage temperature. -10 to 55 degree C operating temperature. Battery life: 25 hours typical. Three years warranty. Easy to read measure/source screen lets you view input and output simultaneously Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
